1. What are machining conditions?

Machining situation is changed by voltage, current, duration, etc. of the spark. Machining speed, size of craters, etc can change by varying "machining conditions".

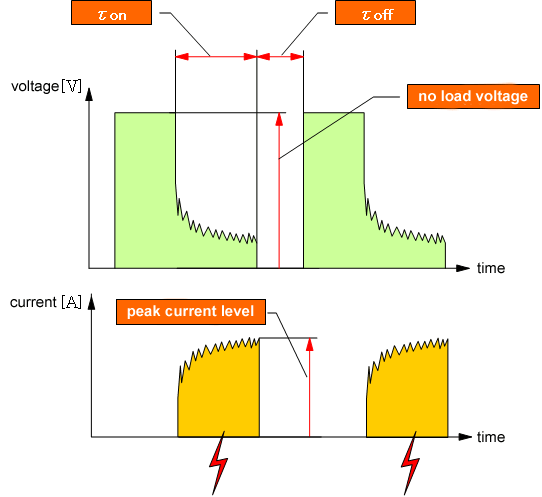

<Main elements of machining conditions>

τon (tau on)
This is also called "pulse width". It means duration of the spark.
It is shown by unit of μSec (microseconds: 1 / million seconds) and is set in the range of around 0 ~ 1000 μSec.
τoff (tau off)
It is also called "downtime". EDM discharges intermittent sparks. It means the downtime after each sparking.
It is set in the range of around 0 ~ 1000 μSec.
Open voltage
It means the voltage applied between the electrode and the workpiece.
It is shown in unit of V (volt), and is set in the range of around 50 ~ 300V.
Peak current value
It means the electric current value of the spark.
It is shown in unit of A (Amp), and is set in the range of around 0 ~ 500A.

Machining conditions
